Builds the part a person actually touches.
start.position_msandend.position_mshavebeen stored (#302) and played (#304) since last week; until now nothing on screen said so.
Design and decisions: #299. The duplicate-line id this leans on: #300.

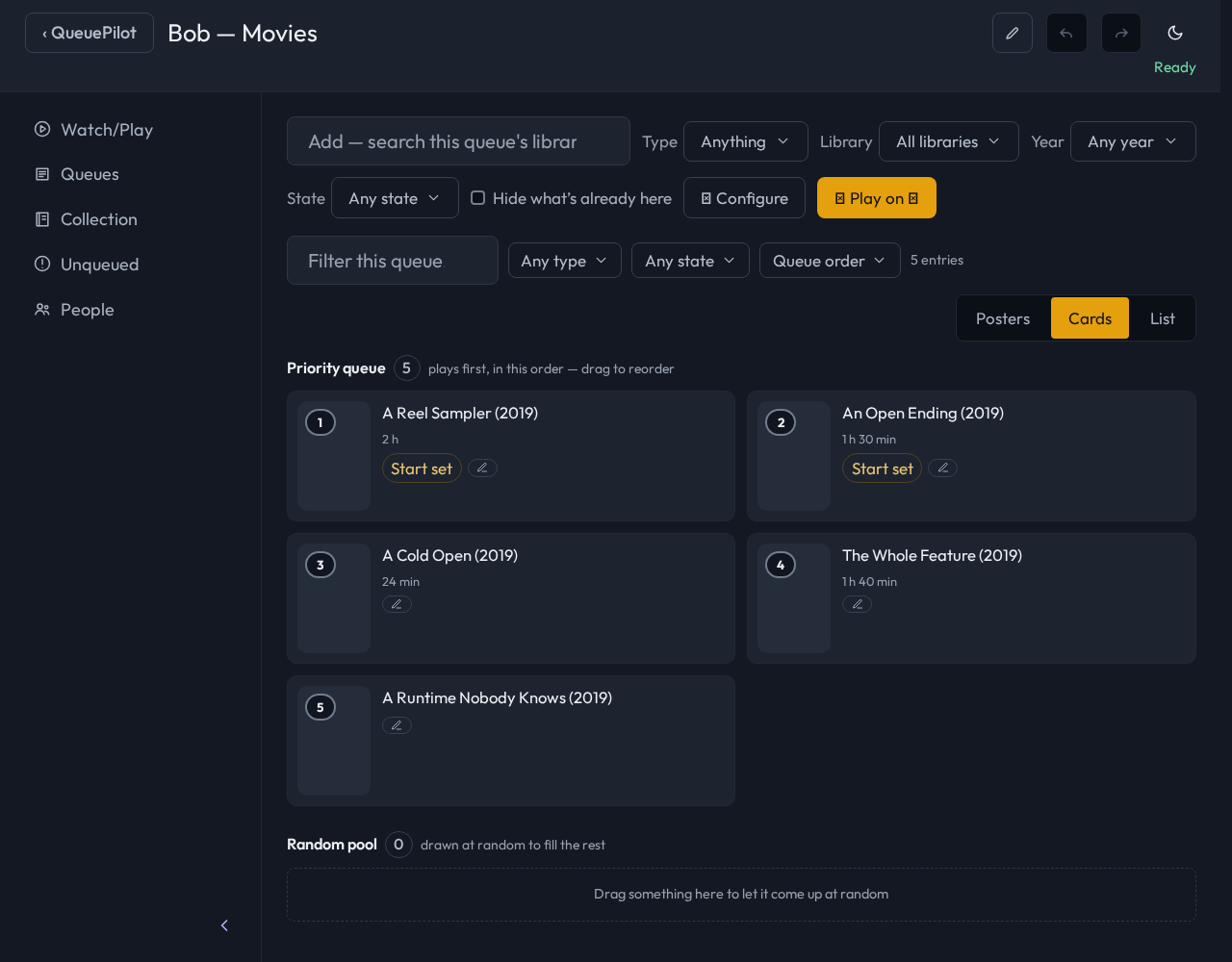

Before
An entry that already carried a section wore a tag reading "Start set" — a label that
names a setting without naming the setting — and its entry sheet offered no way to reach the
value at all.

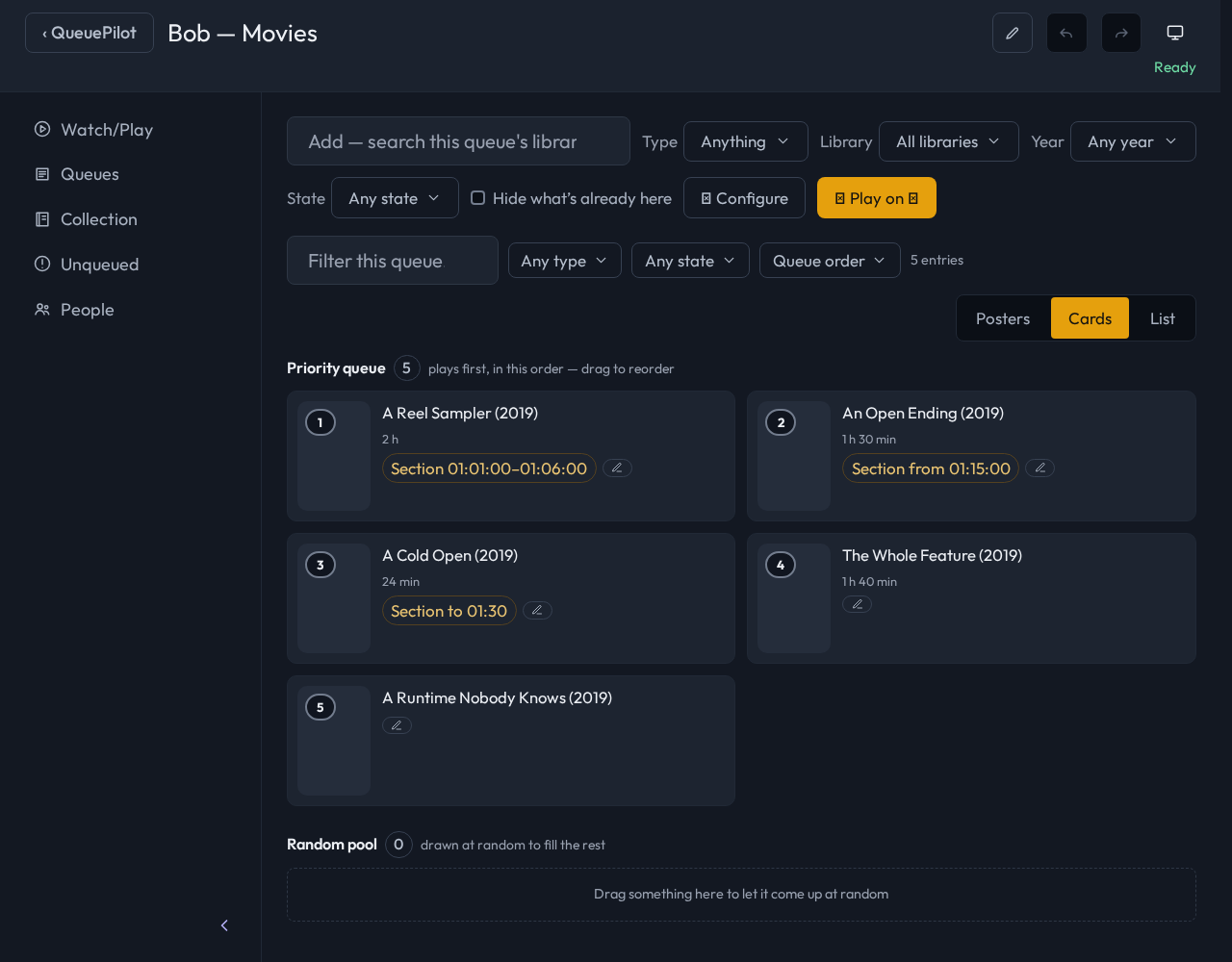

After
The tag reads differently in each state, and says nothing when there is none
All four states of the decision's table are reachable and clearable: neither, start only,
end only, both. An entry with no section wears no tag, which is the rule every tag here
follows.

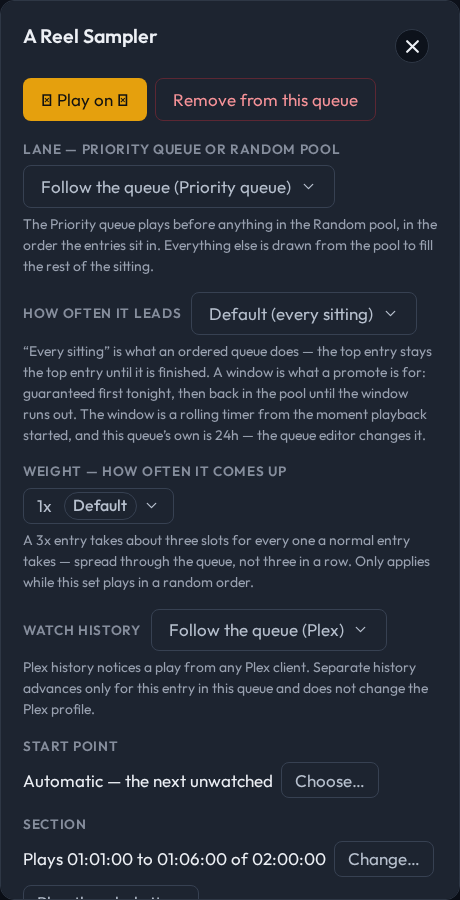

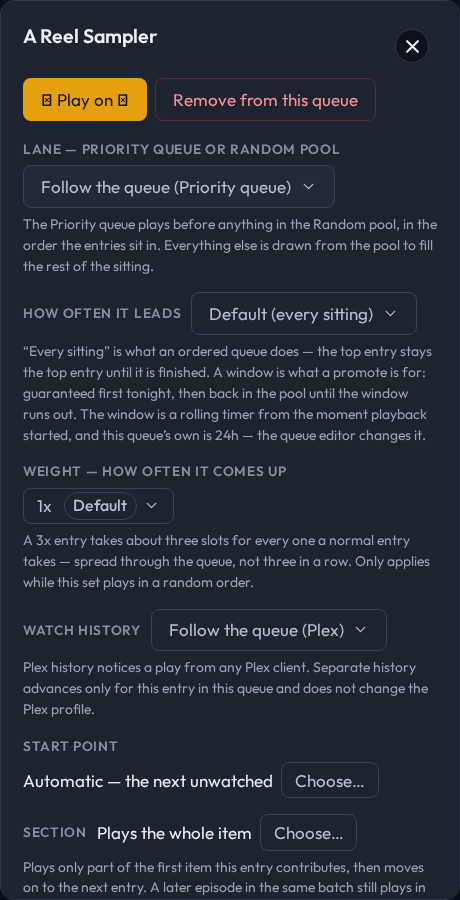

The entry sheet gains a Section row
A summary against the runtime, a Change… that closes the panel and opens the editor, and
the clear right there in the row.

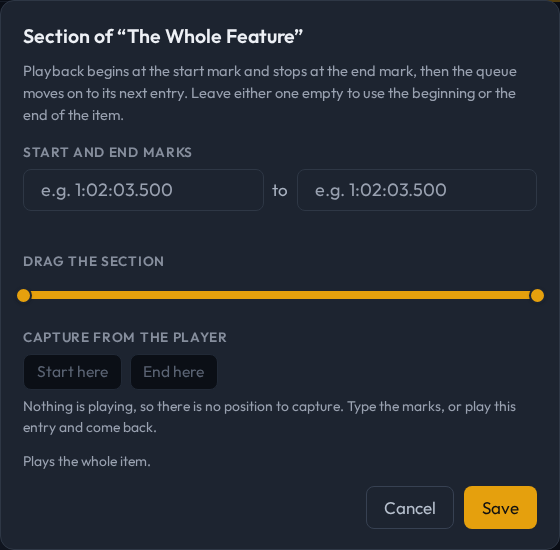

The editor — three routes over one value

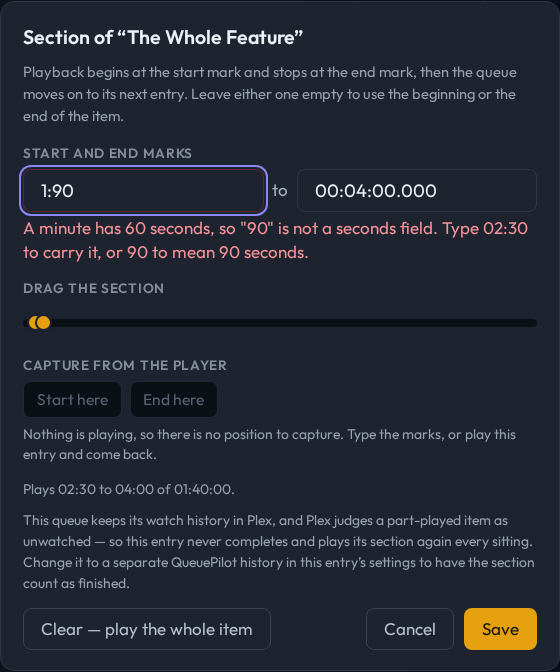

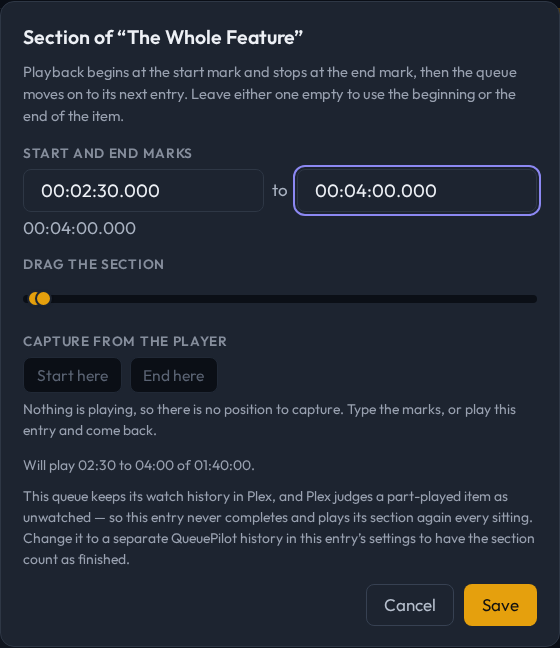

Typed is
TimecodeInputinisRangemode, bounded by the runtime. It owns its own echoand its own refusals, and a refused value stays exactly as typed.

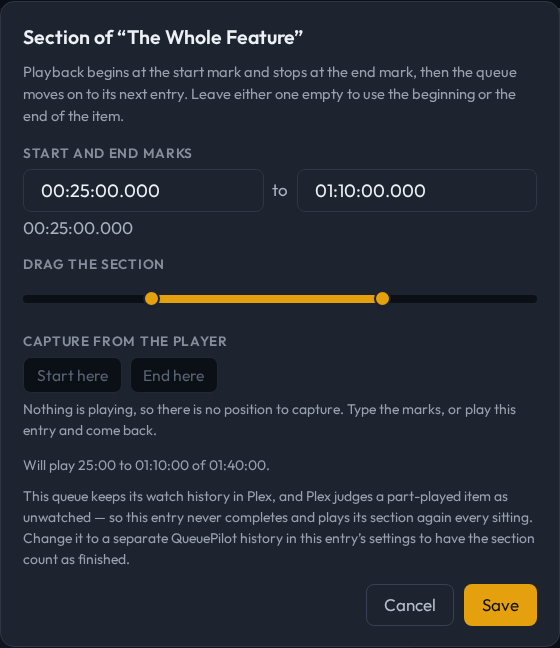

Dragged is
RangeSliderover0..duration.onChangepaints andonChangeEndcommits,so a drag does not remount the fields dozens of times.

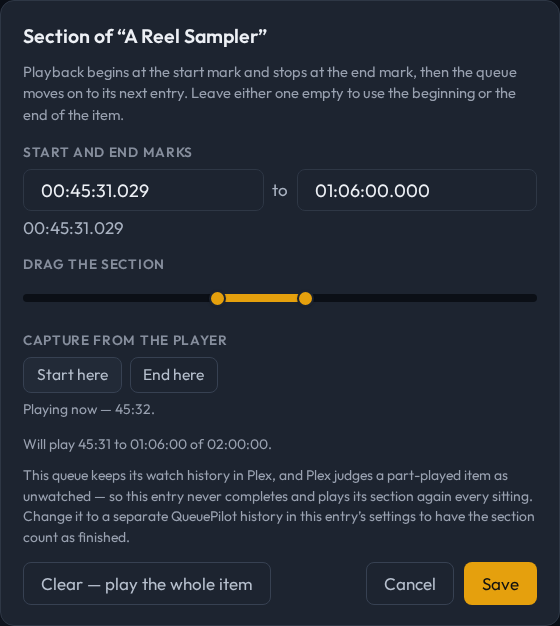

Captured reads the live playback position. The buttons are disabled rather than absent —
this is a passing state, not a missing capability — and the note under them names which of
three reasons is in force: nothing is playing, something else is playing, or no position has
been reported yet. When it can capture it shows the position it would take.
Two decisions worth calling out

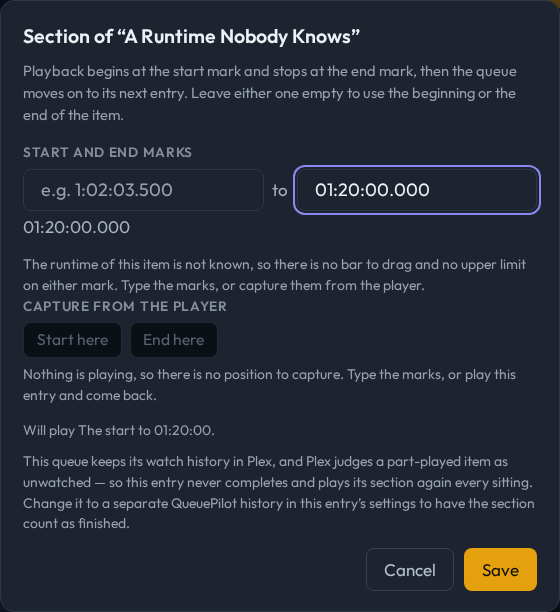

An unknown runtime (
duration: 0) drops the bar rather than clamping to zero. A sliderneeds a scale, and inventing one would draw a proportion that is not true of the item. Passing
durationMs={0}to aTimecodeInputwould clamp every typed mark to zero, so0becomesundefinedand the field takes no upper bound. Typing and capture still work; the modal sayswhy the bar is gone.

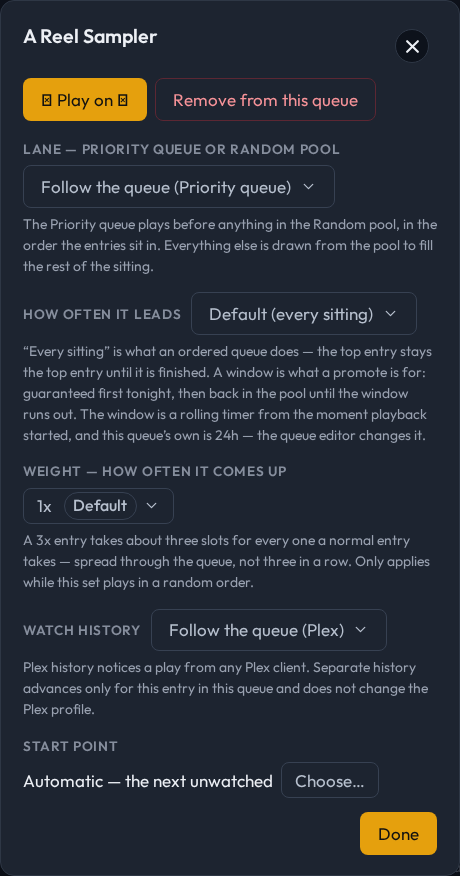

A backend that cannot play a section shows no control at all — absent, never disabled. The
gate is the provider's declared
plays_sections, neverkind === 'plex'. A reading queue anda board-game queue get no tag and no row.

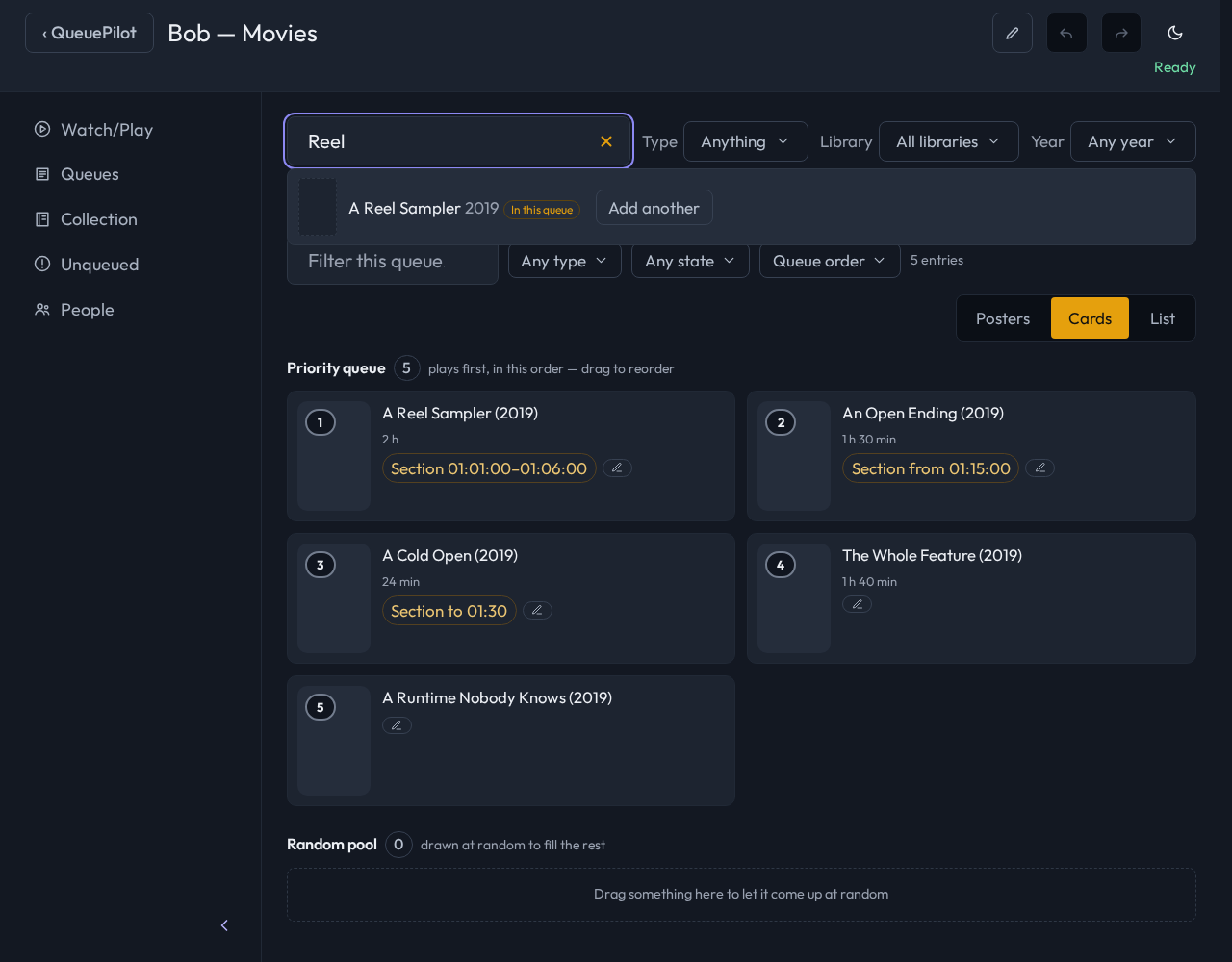

A second section of the same film is reachable
"In this queue" is the right refusal for the ordinary case — an accidental second copy of a
film is a bug, and that badge is what caught it. A demo reel that plays three windows of one
film is the case where a second line is the point, so the refusal keeps its badge and gains a
door: Add another sends
allow_duplicate: true, paints the line the server minted, andopens its settings straight away.

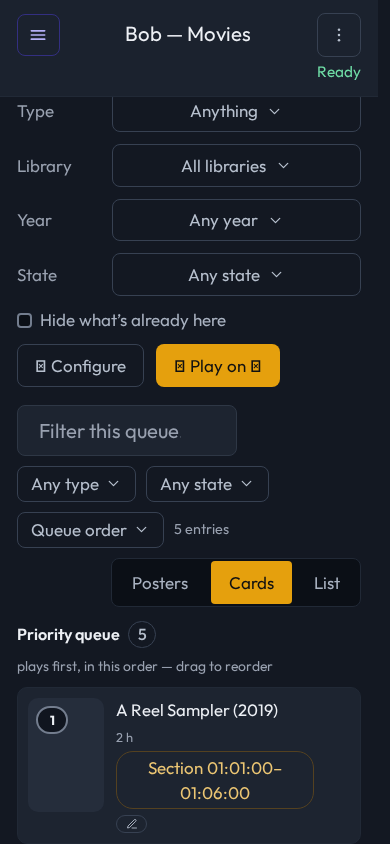

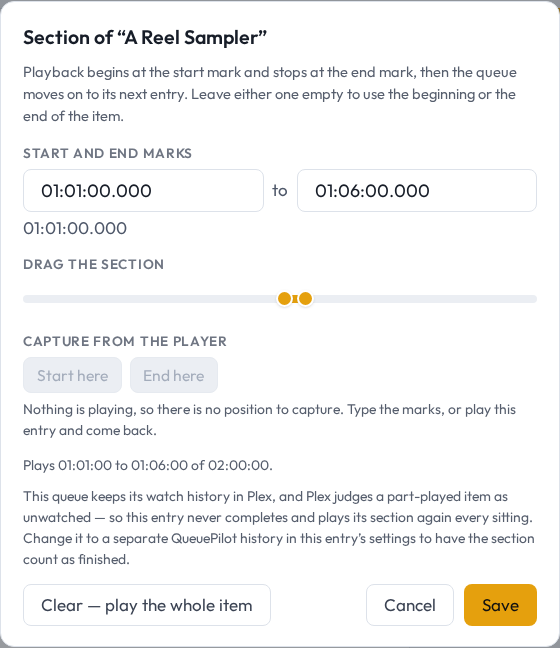

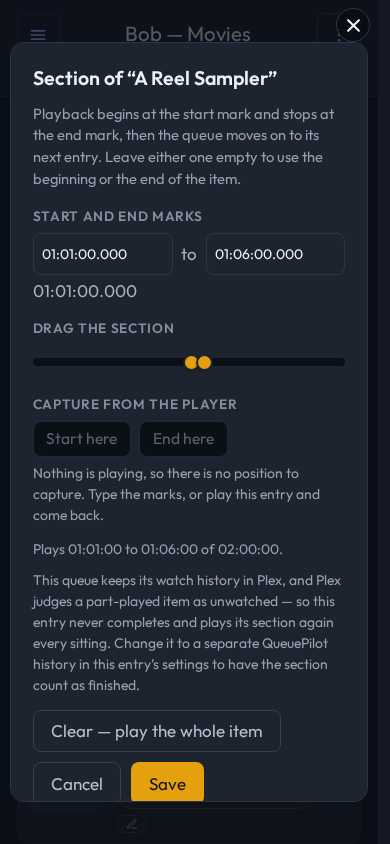

Light scheme, and the Narrow View
The tag wraps rather than truncating, because its meaning is entirely in two timecodes and
Section 01:01:00–01:…says only which end was lost. Every other tag keeps truncating, whichis right when the text is a word. The two
hh:mm:ss.mmmfields take a smaller type size at390px so the value reads in full — a type-size change, not a layout change, because the
two-across arrangement belongs to
TimecodeInput.A data-loss bug found on the way
PATCH …/items/<key>/startreplaces the whole mapping, andStartModal.readForm()returnedonly the unit fields. Changing an entry's episode would have deleted its section's
position_mswith nothing on screen to notice.withUnitandwithPositionMssplit theshared mapping so each writer carries the other's field through, and
section.test.tspinsboth directions.
Two more that came out of the same seam:
{ok: false, error}at HTTP 200, so nothing throws.commitSectionreads the body, or it would report "Saved" over a file it did not change.
startfirst lands it against the storedendand isrefused.
isEndFirst()picks the safe order, and only the end that actually moved is written.Housekeeping
tileFace.clockandNowPlayingBar.toClockwere two hand-rolledcopies in this repo; both are gone, replaced by
formatTimecodefrom the library.everything else speaks milliseconds.
nowPlaying.nowPlayingPositionMs()is the browser'ssingle extrapolator, matching
finished.ts nowPlayingMs()on the server — the scrubber andthe capture buttons ask the same question, and two that drifted would put a mark somewhere
the bar never showed.
hasOverrides()and the toolbar state filter know about a section, or the "has overrides"filter lies. The filter gains a "Plays a section only" option, offered only where a section
can be played.
Server
No server change was needed, and no field was missing.
queueTilealready sends bothstartandend, andProviderInfo.plays_sectionswas already on/api/providers. The onlyjoin the browser had to make itself was
RegistrySet.provider_kind→ the provider list →plays_sections, which is what the newstate/capabilities.tsstore does, in one request forthe life of the page.
Gates
e2e/section-ui-test.tsis a browser gate with no Plex, so it runs on every pull request.Its PATCHes continue through to the server the harness spawned, so the YAML on disk is the
record of what the app wrote.
Already failing on the merge base and untouched here — all five report
[store] YAML import failed: unable to open database file, identically on630701f:topup-test,session-profile-gate-test,rotation-length-test,sse-test,binding-token-test.tile-menu-testis flaky on the merge base too (3 fails in 4 runs there,2 in 3 here) — its optimistic lane paint has to survive an SSE-triggered refresh inside a
1200 ms window.
Not done here
The
TimecodeInputecho restates the start field whenever it holds text, even when the endis the field being edited, because the component derives it from
texts[activeEndpoint]andthat defaults to
"start". It is the library's behaviour and reads as a stray timecode underthe fields. Left alone deliberately: a fix belongs in Charcuterie, not in a local
reimplementation of a component that already owns its echo.
