Recorded the demos at a 10:6 screen ratio and sized the home page to them.

[AlexSkrypnyk]

Summary

The recorded terminal demos were 80x42, which renders almost square at an aspect of 1.04. The home page was built for a 140-column demo it no longer had: the hero tile hardcoded aspect-ratio: 1280 / 705 with object-fit: cover, so an 80-column asset was silently centre-cropped by about 43%, and the dialog rendered the full 42-row terminal at 903px inside a 511px scrollable box. The same recording was therefore framed two different ways, which is what made the hero and the dialog look like two different videos.

All nine demos are re-recorded at 80x27, a 16:10 shape matching a MacBook screen, and the home page is sized to them.

The rows are no longer configured by hand. VideoRecorder::rowsForAspect() derives them from the columns and a wanted aspect, so each video declares only its column count and ASPECT_RATIO = 2560 / 1600 is stated once. A recording can no longer end up an arbitrary shape because one of a pair of numbers was edited without the other.

The recording pipeline itself is unchanged: timings, values and pacing are exactly what the commands produced.

Changes

Recording shape

• VideoRecorder::rowsForAspect(int $cols, float $aspect) solves cols / (rows * FONT_SIZE * LINE_HEIGHT) for the rows, and refuses a non-positive width or aspect.
• The VIDEOS entries drop their rows key and keep only cols; the rows are computed at record time.
• svg-term-render.js gains a --font-size flag, so PHP owns the cell metric the calculation depends on rather than the formula relying on a value hardcoded in the renderer. Verified behaviour-neutral: rendering an existing cast with the flag produced byte-identical output.
• All nine demos re-recorded at 80x27. Each poster is now 1280x794 (aspect 1.612).

Home page

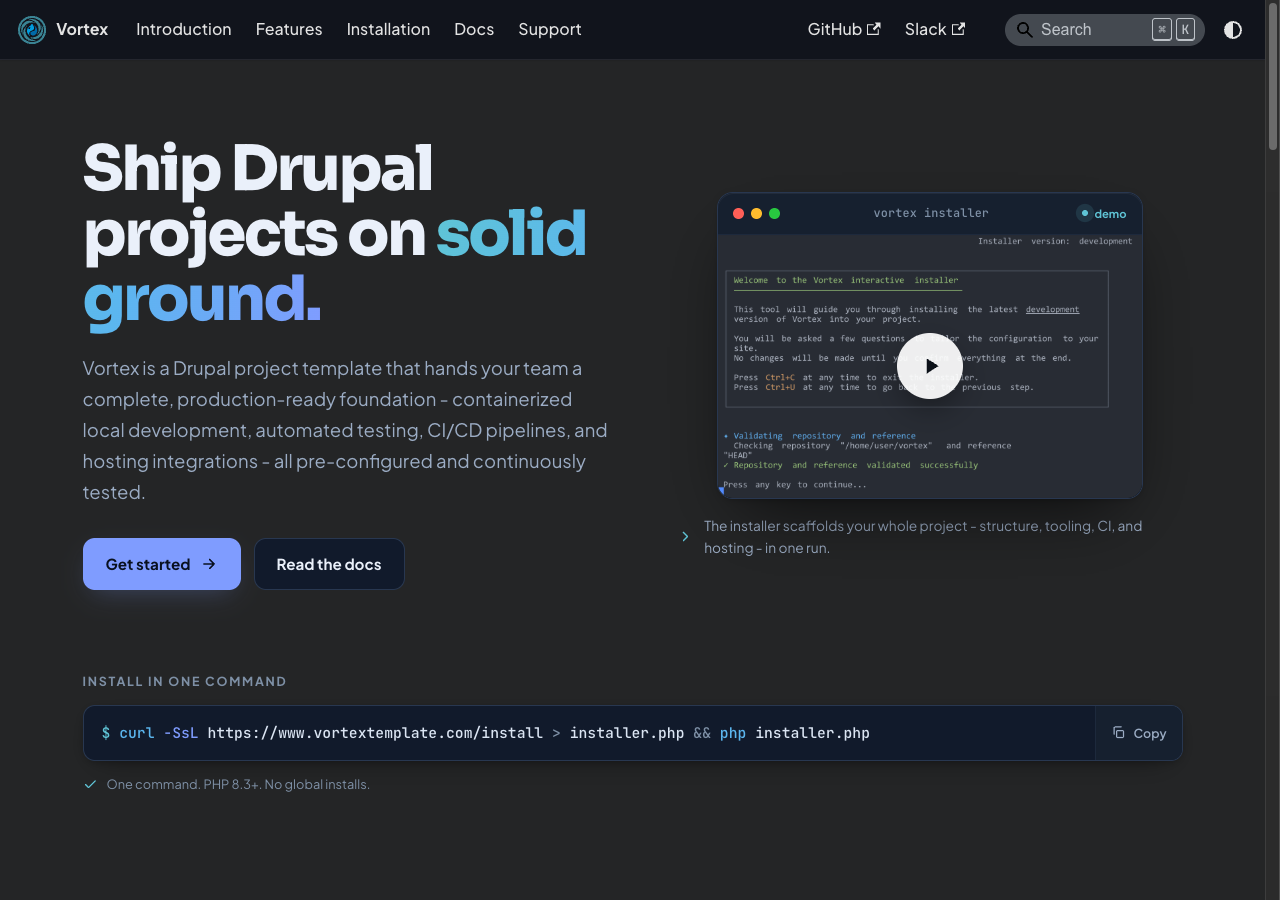

• The hero is the still .png poster rather than the animated .svg. It also fixes the animated SVG continuing to play behind the dialog, which nothing could pause.
• The hero tile carries no aspect ratio of its own. It takes the poster's, so it hugs the image and follows it if the recording is re-shaped again.
• The dialog takes 80% of the viewport width, capped at 1280px so it does not become gigantic on a large desktop, and 100% width below 860px.
• The dialog's height comes from the player rather than from a computed ratio: the player uses fit="width" and derives its own height, and the dialog takes it. That is what makes it hug exactly, because the player's rendered ratio drifts with size - measured at 1.475, 1.513 and 1.534 - as its font size rounds to whole pixels, so no fixed ratio hugs at every size.
• The Production-grade Drupal, since 2017 hero badge is removed, markup and CSS. The shared vtx-pulse keyframes stay, since the tile's live dot uses them.
• AsciinemaPlayer forwards a fit option, with test coverage.

Verification

Measured in a browser at three viewports after the change. The dialog hugs the player exactly at each - zero horizontal and vertical gap - and stays within the viewport:

Viewport	Panel	Player	Gap
2560x1440	1278x901 (capped)	1246x812	0 / 0
1280x800	985x718 (77%)	953x629	0 / 0
390x780	390x345 (100%)	358x256	0 / 0

196 Jest tests pass; eslint, prettier and cspell are clean; the docs build is clean.

Screenshots

Before / After

BEFORE                                  AFTER

  recorded 80x42                          recorded 80x27
  aspect 1.04, near square                aspect 1.61, a MacBook screen
  rows set by hand per video              rows = cols / (aspect x cell)
         │                                         │
         ├──────────────┐                          ├──────────────┐
         ▼              ▼                          ▼              ▼
  ┌─────────────┐ ┌─────────────┐          ┌─────────────┐ ┌─────────────┐
  │ HERO        │ │ DIALOG      │          │ HERO        │ │ DIALOG      │
  │             │ │             │          │             │ │             │
  │ ratio       │ │ 42 rows at  │          │ takes the   │ │ 80% wide,   │
  │ 1280/705    │ │ 903px in a  │          │ poster's    │ │ max 1280,   │
  │ + cover     │ │ 511px box   │          │ own ratio   │ │ 100% mobile │
  │             │ │             │          │             │ │             │
  │ centre-crop │ │ scrollbar,  │          │ whole       │ │ whole       │
  │ ~43% lost   │ │ top ~57%    │          │ terminal    │ │ terminal    │
  └─────────────┘ └─────────────┘          └─────────────┘ └─────────────┘
    shows the       shows the                     same recording,
    middle band     top band                      framed the same way
