Summary

Migrates EuiRange from a class component to a function component.

  • Replaces class context/theme access with useFormContext() and useEuiTheme().
  • Preserves stable IDs, popover state, track measurement, blur timing, and existing range behavior.
  • Removes the internal EuiRangeClass export and class-instance ref usage.
  • Updates the Storybook interaction to focus the real numeric input.
  • Adds regression coverage for IDs, input/slider synchronization, validity, callbacks, popover timing, track width, and ticks.

Closes #9494.

API Changes

There are no changes to the documented EuiRange API.

The internal EuiRangeClass export and class-instance ref access are removed as part of the class-to-function migration, as discussed in #9494.

Screenshots

No visual changes are expected.

The migrated component was tested locally in Storybook and compared with the current production documentation. Slider/input synchronization, popover behavior, ticks, levels, highlight, tooltip, and keyboard interaction remained consistent.

Impact Assessment

  • 🔴 Breaking changes — What will break? How many usages in Kibana/Cloud UI are impacted?
  • 💅 Visual changes — May impact style overrides; could require visual testing. Explain and estimate impact.
  • 🧪 Test impact — May break functional or snapshot tests (e.g., HTML structure, class names, default values).
  • 🔧 Hard to integrate — If changes require substantial updates to Kibana, please stage the changes and link them here.

Impact level: 🟢 Low

The migration preserves the existing DOM structure, class names, styles, ARIA attributes, documented props, and snapshots.

Release Readiness

  • Documentation: No documentation changes required
  • Figma: No design changes
  • Migration guide: No documented API or consumer migration required
  • Adoption plan: Not applicable; this is an internal component implementation migration

QA instructions for reviewer

  • Confirm slider and numeric input synchronization in both directions.
  • Confirm keyboard interaction.
  • Confirm the input popover opens on focus and retains the existing delayed blur behavior.
  • Confirm ticks, levels, highlight, and tooltip behavior.
  • Confirm invalid/out-of-range values behave as expected.
  • Confirm generated and custom IDs remain stable.
  • Confirm the InputWithPopover Storybook story focuses the real numeric input.

Checklist before marking Ready for Review

  • Filled out all sections above
  • QA: Tested light/dark modes, high contrast, mobile, Chrome/Safari/Edge/Firefox, keyboard-only, screen reader
  • QA: Tested in CodeSandbox and Kibana
  • QA: Tested docs changes
  • Tests: Added/updated Jest, Cypress, and VRT
  • Changelog: No changelog required, as confirmed in [EuiRange] Migrate from class to function component #9494
  • Breaking changes: No breaking change label required

Validation

  • React 17: 37/37 EuiRange tests passed
  • React 18: 37/37 EuiRange tests passed
  • 16/16 snapshots passed on both React versions
  • Full pre-push validation:
    • 367 test suites passed
    • 5,273 tests passed
    • 2,753 snapshots passed
  • TypeScript passed
  • ESLint passed
  • git diff --check passed
  • No snapshots changed

Reviewer checklist

  • Approved Impact Assessment — Acceptable to merge given the consumer impact.
  • Approved Release Readiness — Docs, Figma, and migration info are sufficient to ship.

@franciscodocapa95-stack
franciscodocapa95-stack requested a review from a team as a code owner August 18, 2026 16:22
@cla-checker-service

cla-checker-service Bot commented Aug 18, 2026

Copy link
Copy Markdown

💚 CLA has been signed

@github-actions

Copy link
Copy Markdown

👋 Since this is a community submitted pull request, a Buildkite build has not been started automatically. Would an Elastic organization member please verify the contents of this pull request and kick off a build manually?

@github-actions github-actions Bot added the community contribution (Don't delete - used for automation) label Aug 18, 2026
@weronikaolejniczak

Copy link
Copy Markdown
Contributor

buildkite test this

@elastic-vault-github-plugin-prod

Copy link
Copy Markdown

📷 2 visual difference(s) found

Look at the visual diff below. If everything is expected, run Approve visual changes to update baselines, re-run the job or make appropriate fixes.

See the visual regression testing wiki for more information.

Expand to review

euirange (2 differences)

StoryDiff %BeforeAfterDiff

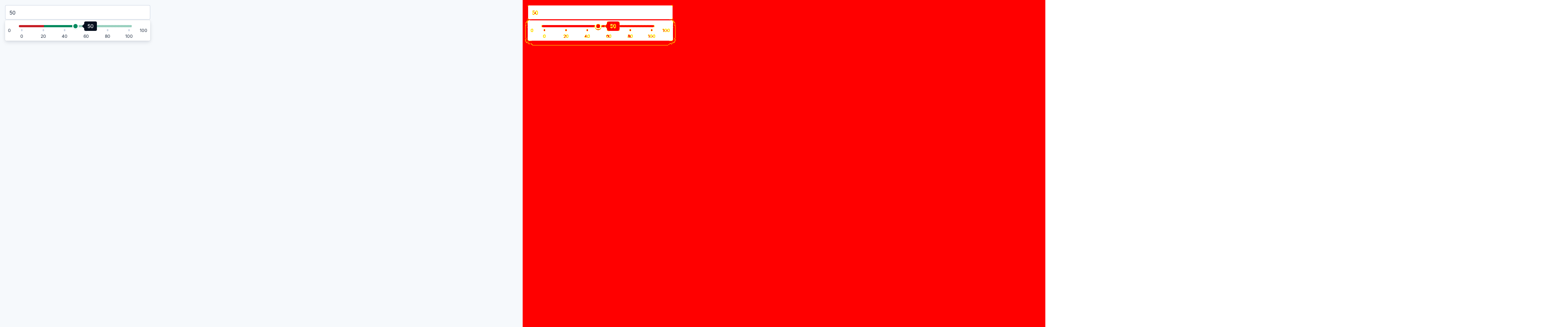

input with popover desktop 97.26%

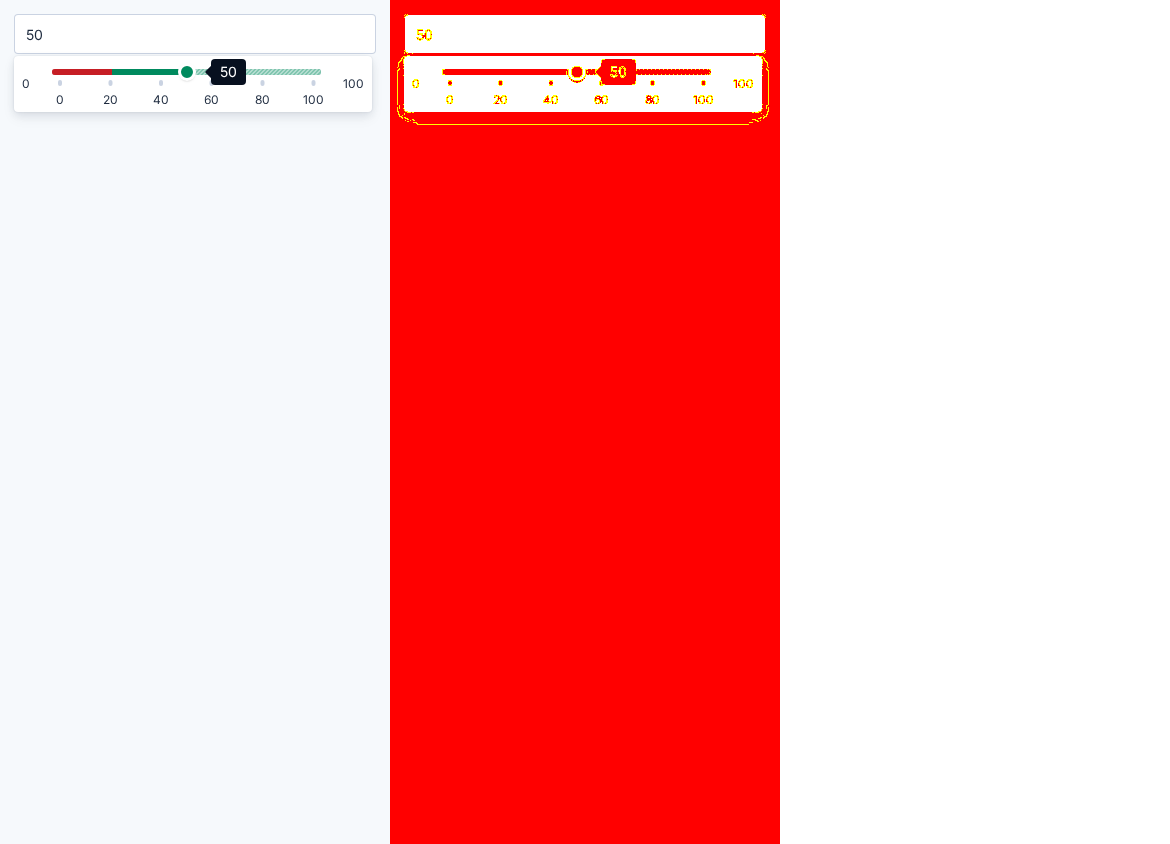

input with popover mobile 90.30%

@infra-vault-gh-plugin-prod

infra-vault-gh-plugin-prod Bot commented Aug 24, 2026

Copy link
Copy Markdown

💔 Build Failed

Failed CI Steps

History

@weronikaolejniczak weronikaolejniczak added the skip-changelog Use on PRs to skip changelog requirement (Don't delete - used for automation) label Aug 24, 2026

Copy link
Copy Markdown
Contributor

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

nit:

Could you update fireEvent to userEvent in the whole file?

trackWidth: 0,
};
const theme = useEuiTheme();
const [id] = useState(() => propsId || htmlIdGenerator()());

Copy link
Copy Markdown
Contributor

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

nit: We have a dedicated custom hook for this:

Suggested change
const [id] = useState(() => propsId || htmlIdGenerator()());
const generatedId = useGeneratedHtmlId();
const id = propsId || generatedId;

Comment on lines +101 to +102
| React.ChangeEvent<HTMLInputElement>
| React.MouseEvent<HTMLButtonElement>

@weronikaolejniczak weronikaolejniczak Aug 24, 2026

Copy link
Copy Markdown
Contributor

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

nit:

Let's destructure these types from the import using type keyword instead of using the React namespace. Applies to the rest of the file.

return thePopover ? thePopover : theRange;
}
}
const thePopover = showInputOnly ? (

Copy link
Copy Markdown
Contributor

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

nit: Can we just name these popover and range? Adding the prefix the looks weird.

<EuiInputPopover
{...inputPopoverProps}
className={classNames('euiRange__popover', inputPopoverProps?.className)}
input={theInput!} // `showInputOnly` confirms existence

Copy link
Copy Markdown
Contributor

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

nit: Let's not use bangs or assertions. Those are essentially telling the TS that we know better. Let's fix the underlying issue instead.

fullWidth={fullWidth}
isOpen={isPopoverOpen}
closePopover={closePopover}
disableFocusTrap={true}

Copy link
Copy Markdown
Contributor

Choose a reason for hiding this comment

The reason will be displayed to describe this comment to others. Learn more.

nit:

This can simply be:

Suggested change
disableFocusTrap={true}
disableFocusTrap

@weronikaolejniczak

Copy link
Copy Markdown
Contributor

blocking:

The VRTs no longer show the range component. We should fix that!

@infra-vault-gh-plugin-prod

Copy link
Copy Markdown

💚 Build Succeeded
