fix(core): forward pass-through props on six more BaseProps components

[harjothkhara]

Summary

Six components declared extends BaseProps but destructured a closed set of props with no rest spread, so aria-*, id, data-*, and event handlers type-checked and silently never reached the DOM. This forwards them, following the exact pattern of the three earlier batches for this class (#5288, #5493, #5563).

Case

#5254 found ten components with this shape against the 0.4.5 tarball; #5563 closed it as the final batch. Sweeping current main (1b706d5d2) the same way — every packages/core/src component whose props interface extends BaseProps, checked for a rest element in its destructure — finds seven more that were not in #5254's list:

• Layout.tsx:238 — root <div> (Layout.tsx:264) gets nothing; Layout does not even accept data-testid today
• MetadataList.tsx:190 — root <div> (MetadataList.tsx:282) gets nothing, while MetadataListItem was fixed in fix(core): forward pass-through props on seven BaseProps components #5563
• NavHeadingMenuItem.tsx:120 — item element gets nothing, while NavHeadingMenu was fixed in fix(core): forward pass-through props on seven BaseProps components #5563
• RadioList.tsx:191 — the role="radiogroup" element (RadioList.tsx:377) gets nothing
• TimeInput.tsx — the native <input> (TimeInput.tsx:650) gets nothing; consumer onFocus/onBlur/onKeyDown are also dropped because the input's own handlers occupy those slots
• TopNavMegaMenuItem.tsx:183 — both drawer and default mode elements get nothing, while TopNavMegaMenu was fixed in fix(core): forward pass-through props on seven BaseProps components #5563
• PowerSearch.tsx — same shape, deliberately not fixed here (see Scope)

Fix

Each component forwards the rest object to the element its ref targets, spread so contract-owned attributes (role, computed aria-labelledby/aria-describedby, the roving tabIndex) cannot be clobbered. Where the component already owns a handler for the same event, the caller's handler is composed in front with composeEventHandlers, per the existing convention:

• RadioList composes onFocus with its tooltip-anchor focus handling
• TimeInput composes onFocus, onBlur, and onKeyDown with its formatting and arrow-key stepping handlers, so a caller handler runs first and stepping still works (asserted in the tests)

Scope

• PowerSearch is left out on purpose: it is a composite of a Tokenizer, a listbox, and an edit popover, and which element should receive pass-throughs is an API decision, not a mechanical fix. Called out here rather than guessed at.
• Layout is listed in the Standardize layout component props: derive a shared prop set for Stack/Grid/Center/Section/Layout/FormLayout #3223 prop-standardization discussion; this change only forwards what LayoutProps already publicly accepts and does not touch its typed surface, but flagging the overlap.

Testing

• 15 new focused tests across the six suites (attribute forwarding, handler forwarding, and contract-preservation guards).
• Red proof: with the tests added and the component fixes reverted, 13 fail and all 209 pre-existing tests in those suites pass — every meaningful new test detects this PR. The other 2 new tests are contract guards that pass by design before and after.
• Green: the six suites pass 222/222 after the fix.
• Full repo vitest run (pnpm -F @astryxdesign/core test): 12890 passed with this change vs 12875 at base — the only delta is the 15 new tests. 31 failures appear in both runs identically (Dialog/Toast motion, packages/build vite layers, CLI doc tests); the same 7 files pass 170/170 when run standalone at base, so they are full-suite-only and pre-existing, not from this change.
• @astryxdesign/core typecheck: passing.
• node scripts/check-changesets.mjs: 74 changesets valid.
• No doc.mjs/story changes: the typed surface is unchanged — this makes the existing types truthful (same as fix(core): forward pass-through props on seven BaseProps components #5563).

Changeset: .changeset/baseprops-passthrough-batch-four.md (@astryxdesign/core: patch).

Refs #5254 (the original report for this class; its list predates these six)

[vercel]

The latest updates on your projects. Learn more about Vercel for GitHub.

Project	Deployment	Actions	Updated (UTC)
astryx	Ready	Preview	Aug 28, 2026 4:56pm

[github-actions]

PR Analysis Report

📚 Storybook Preview

View Storybook for this PR
GitHub Pages may take up to a minute to hydrate after deploy.

🧪 Sandbox Preview

View Sandbox for this PR
GitHub Pages may take up to a minute to hydrate after deploy.

Modified Components

Layout _{(@astryxdesign/core)} · View in Storybook

Metric	Before	After	Delta
Bundle Size (ESM)	N/A	N/A	N/A
Lines of Code	N/A	1483	-
Complexity	N/A	Very High (84)	-

MetadataList _{(@astryxdesign/core)} · View in Storybook

Metric	Before	After	Delta
Bundle Size (ESM)	N/A	N/A	N/A
Lines of Code	N/A	368	-
Complexity	N/A	Very High (35)	-

NavMenu _{(@astryxdesign/core)} · View in Storybook

Metric	Before	After	Delta
Bundle Size (ESM)	N/A	N/A	N/A
Lines of Code	N/A	307	-
Complexity	N/A	High (24)	-

RadioList _{(@astryxdesign/core)} · View in Storybook

Metric	Before	After	Delta
Bundle Size (ESM)	N/A	N/A	N/A
Lines of Code	N/A	442	-
Complexity	N/A	Very High (44)	-

TimeInput _{(@astryxdesign/core)} · View in Storybook

Metric	Before	After	Delta
Bundle Size (ESM)	N/A	N/A	N/A
Lines of Code	N/A	493	-
Complexity	N/A	Very High (82)	-

TopNav _{(@astryxdesign/core)} · View in Storybook

Metric	Before	After	Delta
Bundle Size (ESM)	N/A	N/A	N/A
Lines of Code	N/A	2168	-
Complexity	N/A	Very High (150)	-

Bundle Size Summary

Package	Size (ESM)	Size (CJS)	Gzipped
@astryxdesign/core	N/A	4.8KB	1.2KB

Accessibility Audit

Status: 1 accessibility violation(s) found — 1 serious.

RadioList - 1 issue(s)

• 🟠 serious: Ensure the contrast between foreground and background colors meets WCAG 2 AA minimum contrast ratio thresholds
  • Rule: color-contrast · Affects 3/12 stories · Learn more
  • WCAG: 1.4.3 (Level AA)

Visual Regression

1274 added · 0 removed. View the report

To accept these exact frames: /accept-visual 33191978957/1 <reason>

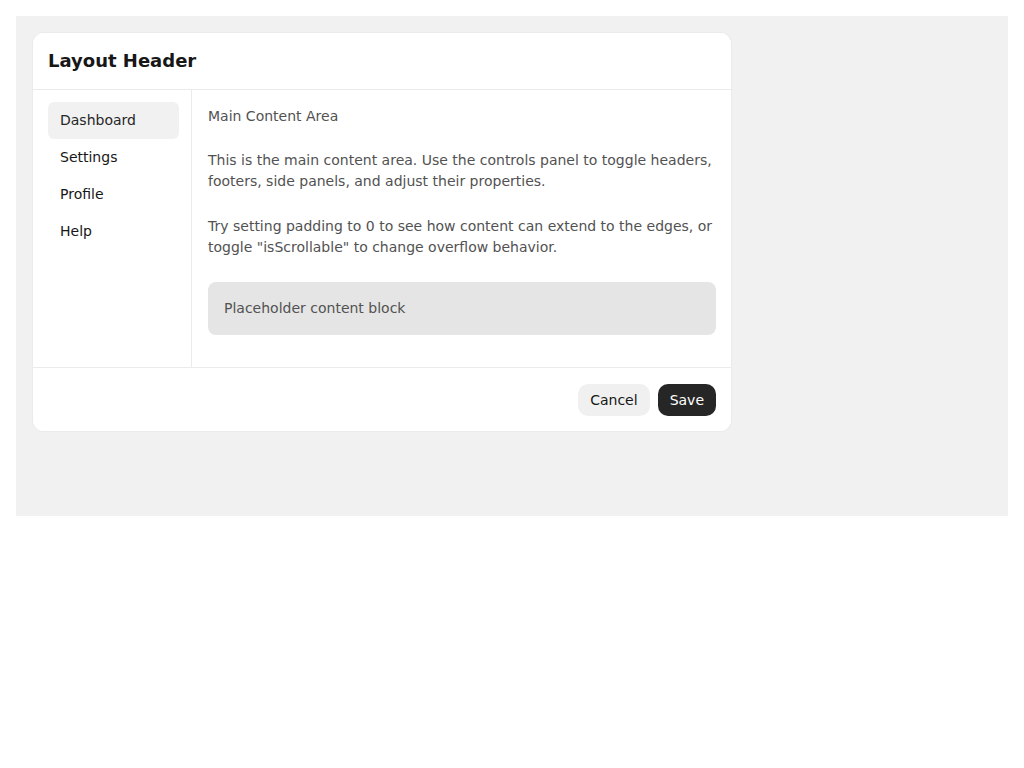

Added — After

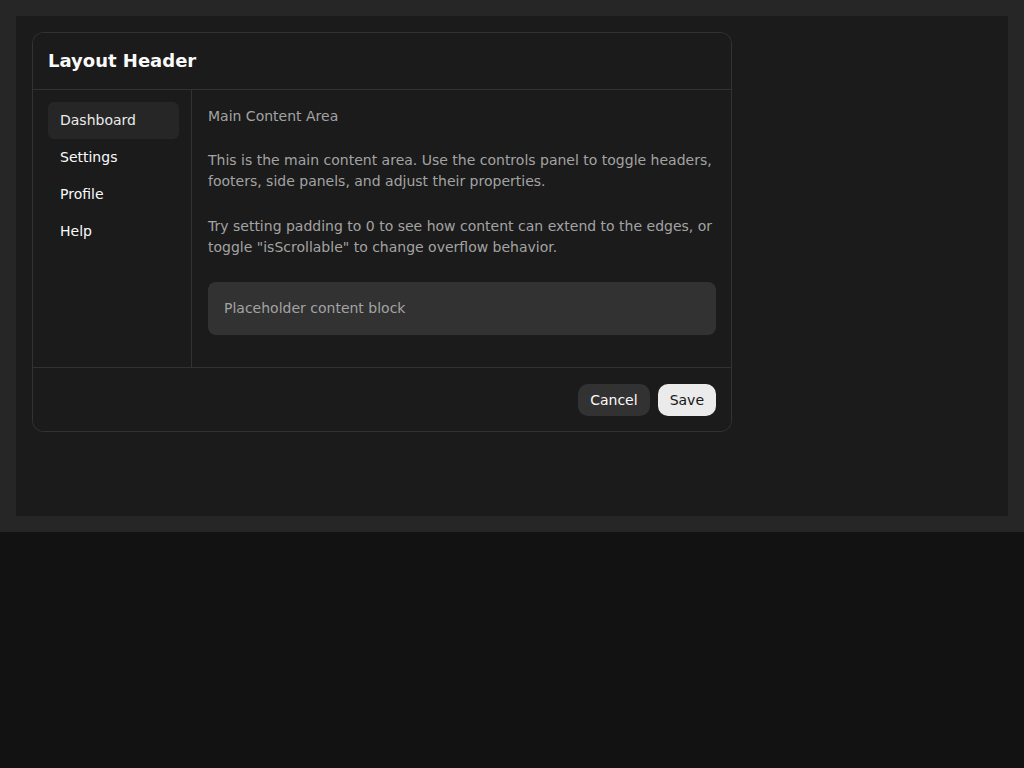

Added — After

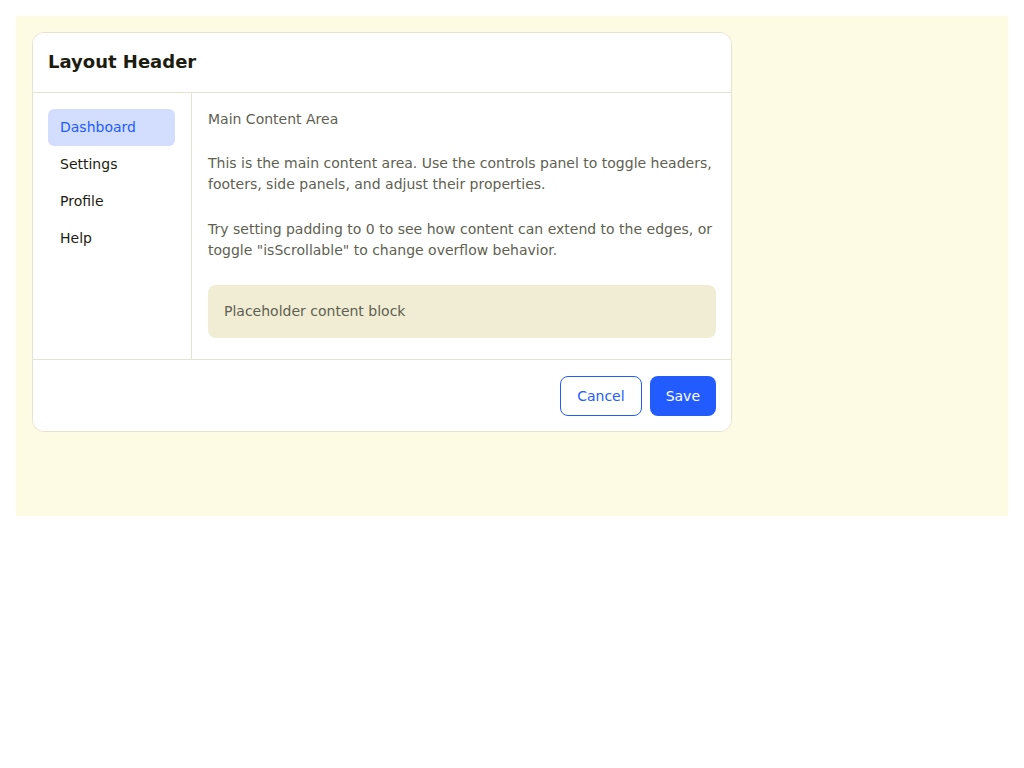

Added — After

---

_{Generated by PR Enrichment workflow | Storybook | Sandbox | View full report}
