Usage

Overview

Mycotools is a comparative genomics software suite built around a curated database — the MycotoolsDB (MTDB) — of standardized genomic data. This guide covers the Mycotools commands that enable high-throughput pipelining and routine genomic analysis.

Mycotools is heavily dependent on the MycotoolsDB: its standardized file formats are what make automated, reproducible analysis possible, so there is no guarantee that these commands will work with arbitrary external files. For the rationale behind this design, see the MycotoolsDB guide.

Contents

• Getting started
• MycotoolsDB
• Sequence data tools
• Evolutionary analysis tools

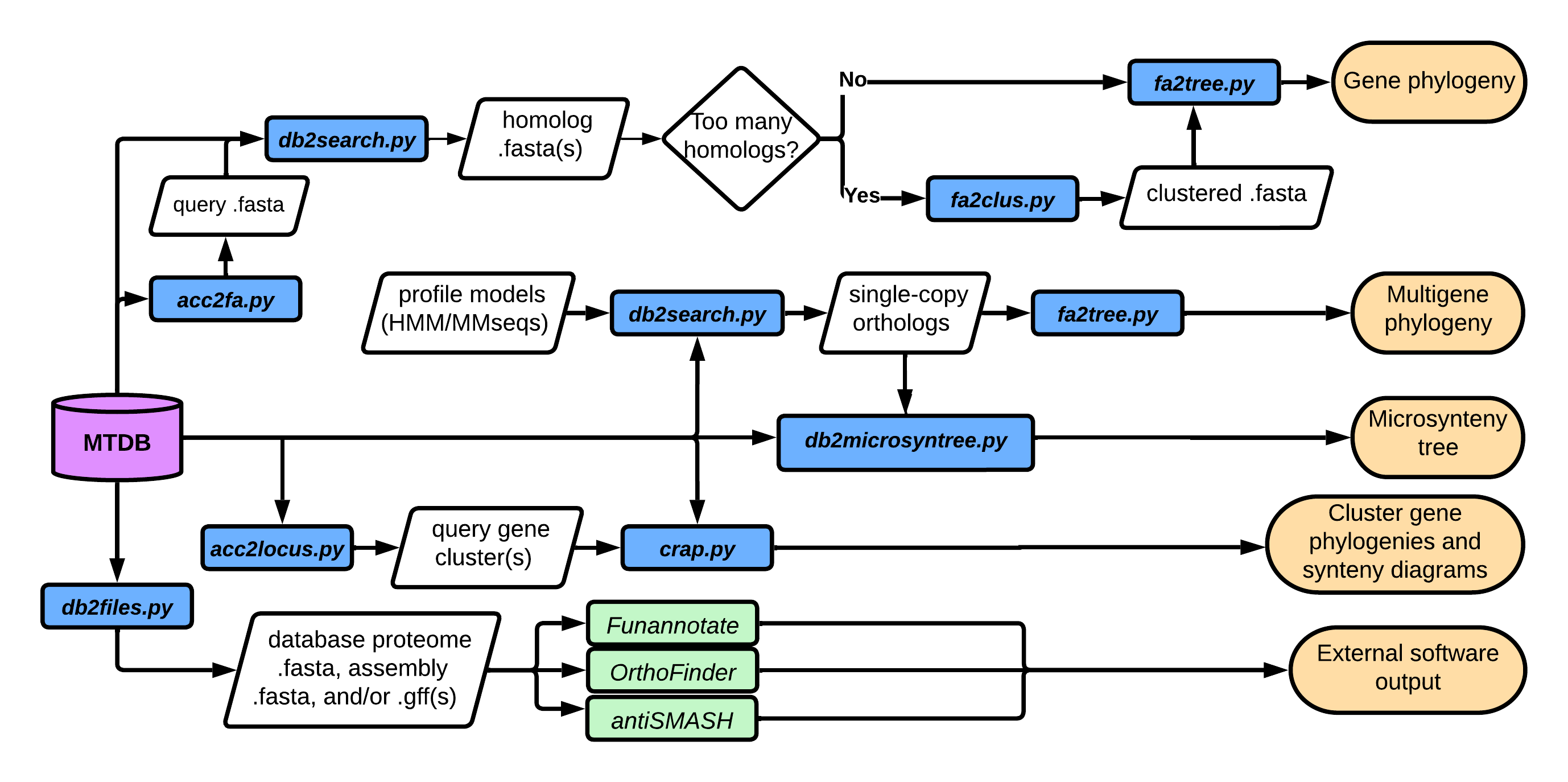

• Mycotools pipelining

Command structure

Mycotools exposes two top-level commands:

Command	Purpose
mtdb	Build, manage, and query the MycotoolsDB
mycotools	Downstream comparative-genomics analysis

Each takes a subcommand — and, where relevant, a nested method or format — such as mycotools phylo tree or mtdb accession gbk. Append -h at any level to list its options:

mycotools -h
mycotools phylo -h
mycotools phylo tree -h

Migrating from an earlier release? The former standalone commands (db2search, fa2tree, acc2gbk, …) remain available for one transition release. They now print a deprecation notice and forward to the nested invocation shown throughout this guide — please update your scripts accordingly.

---

Getting started

After installation, decide which role applies to you:

• Users who want to work with an existing MycotoolsDB should interface with a preexisting central database.
• Administrators building a new MycotoolsDB should proceed to initialization.

---

MycotoolsDB

The following commands interface with and manipulate MycotoolsDB (MTDB) .mtdb files. To learn more about the MycotoolsDB and the .mtdb format standard, refer to this guide.

Initialization

mtdb update initializes and builds the primary MTDB. To instead interface with an established MTDB, see interfacing.

De novo initialization

Fungi. To initialize a curated database of all NCBI and MycoCosm (JGI) fungal genomes:

mtdb update -i <INIT_DIR>

JGI downloading is throttled to one file per minute, so initialization takes multiple days. It can be resumed with -r YYYYmmdd.

Bacteria, plants, animals, archaea. To initialize a curated database of NCBI genomes from other kingdoms/superkingdoms:

mtdb update -i <INIT_DIR> --kingdom <KINGDOM>

There are hundreds of thousands of bacterial genomes — and plant and animal genomes are orders of magnitude larger — so this may take several days to weeks.

Specific lineages. To restrict initialization to specific lineages of Fungi, append --lineage and --rank. Include the appropriate --kingdom argument if the target is not Fungi:

mtdb update -i <INIT_DIR> \
    --lineage "Pezizomycotina,Agaricomycotina" \
    --rank "subphylum,subphylum"

HPC usage. If you use a job submission protocol such as SLURM, you can encrypt your NCBI and JGI login information and pass the encryption password when submitting a job, as described under managing.

Reference initialization

A MycotoolsDB can be initialized against an external .mtdb file — for example, to reproduce an analysis using another dataset. Note that this only assimilates NCBI and JGI genomes from the reference .mtdb.

If you are currently linked to an existing MycotoolsDB, unlink first:

mtdb -u

Then initialize from the reference, appending any necessary arguments:

mtdb update -i <INIT_DIR> -r <REF.mtdb>

On success, a new MycotoolsDB is initialized in <INIT_DIR>. To link back to a previously established MycotoolsDB, see interfacing.

Local initialization

A MycotoolsDB can be initialized from a predb.tsv file describing your local genomes. Mycotools requires both an assembly and an annotation for every genome in the database.

Generate a blank spreadsheet:

mtdb predb > predb.tsv

Once it is filled in, initialize your primary MTDB against the metadata spreadsheet:

mtdb update -i <INIT_DIR> --predb predb.tsv

Updating

Update the MycotoolsDB:

mtdb update -u

Update the taxonomy of the primary MTDB:

mtdb update -t

Interfacing

mtdb is the central MycotoolsDB utility. Run without arguments, it prints the path of the primary database (MycotoolsDBs are labeled YYYYmmdd.mtdb):

$ mtdb
/home/xonq/mtdb/mtdb/20210125.mtdb

To link to a primary MTDB:

mtdb -i <DATABASE_BASE_DIR>

Managing

To encrypt a local copy of your NCBI and JGI passwords for fast access:

mtdb manage -p

This is required to submit jobs for commands that need passwords. Such commands (for example mtdb update) receive the password from stdin:

read -s PASSWORD
# <type password>
printf '{"username":"myname","password":"%s"}' "$PASSWORD" | mtdb update -u

Querying

mtdb can query ome codes. To obtain the entire row for an ome code:

mtdb <OME>

To obtain a specific file path for an ome, append .fna (assembly), .faa (proteome), or .gff3 (gene coordinates):

mtdb <OME>.<EXTENSION>

Because mtdb returns paths, you can use standard shell utilities to work with the output — for example, to open the database in an editor or grep it:

vim $(mtdb)
grep 'Psilocybe' $(mtdb)

Note: grep may return non-specific taxonomy results. For example, grep Athelia $(mtdb) yields not only the genus Athelia but also all members of the family Atheliaceae. Use mtdb extract to subset by taxonomy precisely.

Creating modular databases

mtdb extract subsets lineages of interest from the primary MTDB. By default it ignores use-restricted data; add -n to include use-restricted data only if you understand and will respect its limitations. Run mtdb extract -h for all options.

Extract a database for a taxonomic order:

mtdb extract -l Atheliales > atheliales.mtdb

Extract all NCBI Aspergillus accessions:

mtdb extract -s ncbi -l aspergillus > aspergillus.mtdb_ncbi

Extract a list of orders from a file:

mtdb extract -ll <TAX_FILE> > taxa.mtdb

Acquiring database files

mtdb files takes a .mtdb file (the primary database by default) and either symlinks the selected file types, hard-copies them, or prints their paths. A symlink is a lightweight placeholder that points at the database file, so it does not consume additional storage the way a hard copy does. Because editing a symlink edits the original file, only hard-copy (--hard) when you need to edit the files.

Suppose you want protein data for one family. First extract a database of the organisms of interest:

mtdb extract -l Atheliaceae > atheliaceae.mtdb

Then copy the protein fastas into the current directory (run mtdb files -h for all options):

mtdb files -d atheliaceae.mtdb -p

Or, if you only need the paths (links) to these files:

mtdb files -d atheliaceae.mtdb -p --print

Adding local genomes

To add in-house genomes and annotations (both required), mtdb predb ingests your genome and metadata, curates them, and prepares a database file for integration. Your database administrator then adds the result to the primary MTDB.

First, generate a predb spreadsheet:

mtdb predb > predb.tsv

The resulting predb.tsv can be edited in spreadsheet software and exported as a tab-delimited .tsv, or edited directly in a plain-text editor (tab-separated). Note the following conventions for the genomeSource column:

• De novo annotations produced by Funannotate/Orthofiller must be entered as new.
• Annotations derived directly from NCBI/JGI data must specify their source.
• Updates to existing entries may not be detected automatically from metadata, so enter the current MTDB ome code you are updating in the previous_ome column.

Next, generate a MycotoolsDB file from your completed predb and notify your database administrator that it is ready for integration:

mtdb predb <PREDB.TSV>

Administrators finalize integration into the primary MTDB with:

mtdb update -a <PREDB2DB.mtdb>

Converting genome codes to strain names

mycotools rename substitutes MycotoolsDB ome codes (e.g. fusgra1) with taxonomic names (e.g. Fusarium_graminearum_var._XYZ) throughout an input file.

mycotools rename <INPUT_FILE> [MYCOTOOLSDB] [FORBIDDEN_CHARS]

• INPUT_FILE — file in which ome codes are regex-substituted for names
• MYCOTOOLSDB — optional .mtdb file (defaults to the primary database)
• FORBIDDEN_CHARS — optional string of flag characters controlling which name components are omitted:

Flag	Omits
o	ome code
g	genus
s	species
v	strain
a	source accession

For example, to substitute ome codes for genus, species, and strain (omitting the ome code and source accession):

mycotools rename <INPUT_FILE> oa

---

Sequence data tools

Sequence data statistics

Compute assembly or annotation statistics for a single file:

mycotools stats assembly <ASSEMBLY.fa>
mycotools stats annotation <ANNOTATION.gff3>

To obtain a table of statistics across many organisms, create a MycotoolsDB of the organisms of interest and pass it instead:

mycotools stats assembly <MTDB.mtdb>
mycotools stats annotation <MTDB.mtdb>

To write the output to a file, redirect with > <OUTPUT_FILE> or supply an output file as the second argument.

Downloading JGI/NCBI files

These commands take a MycotoolsDB (or a manually constructed input, shown at the end of this section). On completion, they emit predb.tsv files usable as a standard local-genome metadata spreadsheet for adding local genomes.

Suppose you want transcript data for the genus Aspergillus. First extract the relevant subset of the database:

mtdb extract -l aspergillus > aspergillus.mtdb

Delete the line(s) of any organisms you do not want. Run mycotools download jgi -h or mycotools download ncbi -h to find the flags for the files you need. Each downloader filters the input database to its own source, so the same extracted .mtdb can be passed to both. To download transcript data (and EST data for JGI) into the current directory:

mycotools download jgi -i aspergillus.mtdb -t -e
mycotools download ncbi -i aspergillus.mtdb -t

To unzip the results, run gunzip <FILETYPE>/*.gz.

To submit as a job (not recommended), create an encrypted MycotoolsDB passkey via mtdb manage and pass the password to these commands via stdin.

Alternatively, -i accepts a newline-delimited file of genome codes (JGI) or assembly/BioSample accessions (NCBI):

jgiGenomeCodes.txt

Abobi1
Absrep1
Acain1

ncbiBioSamples.txt

SAMN15352002
SAMN06205226
SAMN02744098

mycotools download jgi -i jgiGenomeCodes.txt -t -e
mycotools download ncbi -i ncbiBioSamples.txt -t

Downloading NCBI SRA reads

After installing NCBI's SRA tools and confirming fastq-dump is on your PATH:

mycotools download ncbi --sra -i <REFERENCE>

The reference may contain SRA IDs, a BioProject, or any query that uniquely resolves to the SRRs of interest. For paired-end reads, add -pe.

Acquiring accessions in fasta, gff, and gbk format

All Mycotools accessions — assembly or protein — take the form <OME>_<ACC>, where OME is the MTDB genome codename and ACC is the accession. Suppose you want Panaeolus cyanescens (ome pancya1) PsiD, whose NCBI accession is PPQ80975.1.

Accession retrieval is available through the mtdb accession subcommand (alias mtdb a), with a format subcommand for each output: fa, gff, gbk, and locus. Run mtdb accession -h for the format list, or mtdb accession <FORMAT> -h (e.g. mtdb accession gff -h) for a format's options.

Prepend the ome codename and _ to the accession, then retrieve it from the MTDB:

mtdb accession gff -a pancya1_PPQ80975.1
mtdb accession fa  -a pancya1_PPQ80975.1
mtdb accession gbk -a pancya1_PPQ80975.1

To write to a file, append > <FILENAME>.

For a list of accessions, create an input file with one accession per line:

mtdb accession gff -i <INPUT_FILE>
mtdb accession fa  -i <INPUT_FILE>
mtdb accession gbk -i <INPUT_FILE>

Or supply accessions from stdin (note the - argument):

echo "pancya1_PPQ80975.1" | mtdb accession gbk -a -

Full genome GenBanks

Full genome GenBanks (GBKs) are not produced by default, to save space. To retrieve one, append --full to mtdb accession gbk and change -a from an accession to an ome code:

mtdb accession gbk -f -a athter2.2 > athter2.2.full.gbk

Acquiring loci

Retrieve loci as above, bounded by a number of genes or nucleotides (-n) plus or minus a focal accession.

List genes within +/- 5 kb of an accession (note -n for nucleotides):

$ mtdb accession locus -a fibpsy1_906341 -p 5000 -n
fibpsy1_809145
fibpsy1_923701
fibpsy1_771516
fibpsy1_906341
fibpsy1_719531
fibpsy1_846242
fibpsy1_138

List genes within +/- 5 genes of an accession (note the absence of -n):

$ mtdb accession locus -a fibpsy1_906341 -p 5
fibpsy1_880711
fibpsy1_846234
fibpsy1_809145
fibpsy1_923701
fibpsy1_771516
fibpsy1_906341
fibpsy1_719531
fibpsy1_846242
fibpsy1_138
fibpsy1_942299
fibpsy1_906343

Retrieve genes between two accessions (note -b for between):

$ mtdb accession locus -a "psicub1_30114 psicub1_87205" -b
psicub1_30114
psicub1_72370
psicub1_30121
psicub1_30049
psicub1_72373
psicub1_87205

Generate a GenBank from a locus (useful for clinker):

mtdb accession locus -a <OME>_<ACC> -p 5 | mtdb accession gbk -a -

Output GFFs and protein fastas for a locus:

mtdb accession locus -a <OME>_<ACC> -p 5 --ome

Extracting coordinates from a fasta

mycotools seq coords extracts subsequences from a nucleotide fasta by coordinate.

mycotools seq coords <FASTA> <SEQ_ID> <START> <END> <STRAND>

Extract a full sequence from the sense strand (0 -1 spans the entire contig):

mycotools seq coords assembly.fna scaffold_20 0 -1

Extract a coordinate range from the antisense strand:

mycotools seq coords assembly.fna scaffold_20 69 420 -

For bulk extraction, supply a tab-delimited table with one region per row:

#fasta_path   sequence_id   start_coordinate   end_coordinate   strand_sense   [concat_id]

mycotools seq coords coords.tsv

Extracting sequences from GFF coordinates

mycotools seq gff extracts the nucleotide or amino-acid sequences associated with a gene-coordinates gff file. It accepts optional flanking nucleotides (plus/minus) and extracts flanks independently for each sequence ID (column 1) within the gff. Coding or noncoding regions may be specified. With --intergenic, only the first and last gene of each fasta sequence are considered.

For example, extract nucleotide sequences with 1 kb flanks, including noncoding regions, for the genes in a gff:

mycotools seq gff -g <.GFF3> -a <.FNA> -nc -pm 1000 -n

Adding corrected/new gene models to the database

mycotools gff add adds new and corrected gene models to a full-genome gff. Overlapping coordinates can be removed, and an update file for the primary MTDB is optionally generated.

To add corrected genes from an exonerate-derived gff to a MycotoolsDB gff and prepare a database update:

mycotools gff add -i <EXONERATE_GFF> -a $(mtdb <OME>.gff3) -u

Database administrators must finalize the update to propagate the data to the primary database:

mtdb update -a <ADD2GFF.mtdb>

Visualizing loci

mycotools gff svg takes a .gff3 — or a newline-delimited list of .gff3 paths — and, for each contig, outputs an SVG of the locus annotated by function from the product= field.

Render an SVG from a single GFF3:

mycotools gff svg -g <MY.gff3>

Render SVGs for every GFF3 in a newline-delimited list, with width set to 20:

mycotools gff svg -i <LIST_OF_GFF3.nsv> -o <OUTPUT_DIR> -w 20

---

Evolutionary analysis tools

Homolog search of the MycotoolsDB

mycotools homology db runs hmmer, blast, diamond, or mmseqs, queries an input fasta, and outputs a results fasta for each accession in the query.

Homology group, single-copy ortholog, and pangenome circumscription

mycotools cluster db circumscribes homology groups using mmseqs cluster to group protein sequences by amino-acid similarity. It outputs a crude pangenome circumscription, homology groups present in single-copy across the dataset, and — optionally — near single-copy homology groups meeting criteria for median genes/HG per genome (-e) and standard deviation (-s). This is useful for large-scale homology group circumscription and as a crude single-copy ortholog inference module.

Phylogenetic tree building

mycotools phylo tree takes a fasta file or a directory of fasta files, trims, and builds trees. See the complete phylogenetic pipeline below.

Swiftly construct a FastTree from a fasta:

mycotools phylo tree -i <FASTA>.fa --fast

Prepare a robust IQ-TREE for SLURM job submission:

mycotools phylo tree -i <FASTA> -s -A PAS1046

Construct a multigene phylogeny with independent evolutionary models per gene:

mycotools phylo tree -i <FASTA_DIR> -p

The final IQ-TREE file is *.contree; the FastTree output is a .treefile. View trees with FigTree.

Microsynteny tree building

A microsynteny tree recapitulates the divergence in gene order between species. Mycotools implements a maximum-likelihood microsynteny tree reconstruction from a binary trait alignment of the presence/absence of combinations of gene families in focal neighborhoods.

mycotools phylo synteny attempts to determine these focal neighborhoods around gene families that exist in single-copy across the dataset, though it is ideal to manually supply a set of focal genes via -f. The neighborhoods used in the presence/absence alignment are derived from pairs of gene families that include a focal gene family within an 11-gene sliding window (adjustable with -w). The tree is then built from this binary alignment via IQ-TREE2 using a general time-reversible model with ascertainment-bias correction.

mycotools phylo synteny -d <MTDB> -f <FILE_OF_SCOs> -t <PHYLOGENOMIC_NEWICK_CONSTRAINT>

Sequence similarity clustering

Some gene families (e.g. P450s) have many highly identical homologs, which complicates phylogenetic analysis and the handling of large datasets. mycotools cluster fasta invokes sequence-clustering algorithms to systematically truncate a dataset without constructing a phylogeny. It optionally implements an automated, iterative approach to obtaining a cluster of a minimum-to-maximum size that contains the gene of interest.

For hierarchical agglomerative clustering, mycotools cluster fasta either takes a fasta and generates a distance matrix (via usearch calc_distmx by default, or the percent identity of diamond alignments), then clusters sequences and outputs a .clus file of cluster assignments and a .newick dendrogram.

Note: sequence-similarity clustering uses a heuristic — sequence similarity — as a proxy for relatedness. It may therefore remove closely related sequences when the number of input genes greatly exceeds the maximum cluster constraint, or when there are no highly similar sequences around the gene of interest.

Run mmseqs cluster on a fasta with a minimum 20% query coverage and 30% amino- acid identity:

mycotools cluster fasta -f <FASTA>.fa -m 0.2 -x 0.3

Iteratively cluster until a cluster of 50–200 genes is achieved:

mycotools cluster fasta -f <FASTA> -m 0.2 -x 0.3 \
    --iterative <FOCAL_GENE> --minseq 50 --maxseq 200

Gene cluster phylogenetic and synteny analysis

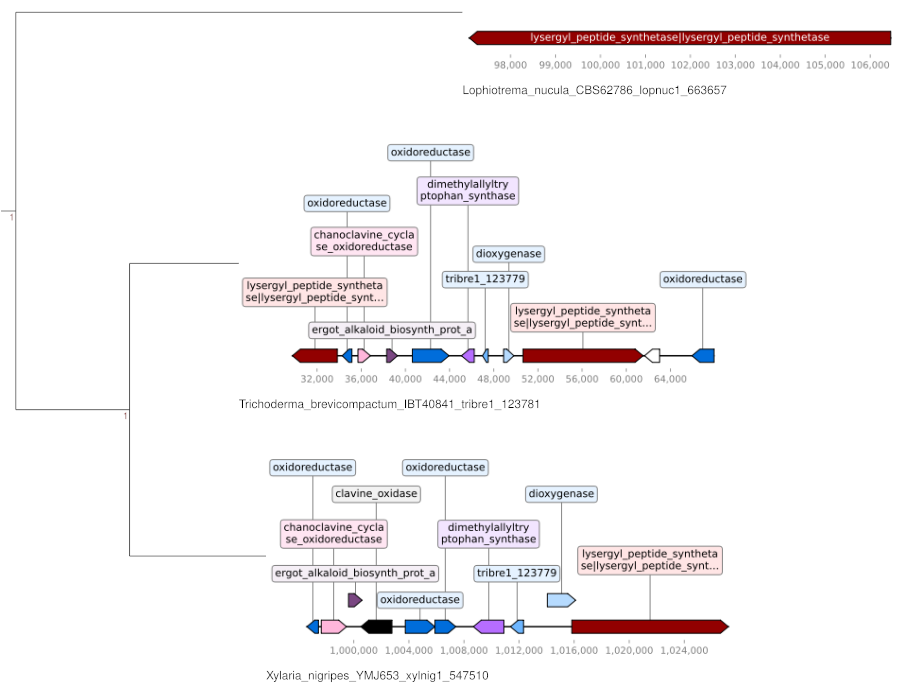

CRAP — adapted and expanded from the Slot & Rokas implementation — reconstructs and visualizes gene cluster phylogenies to study gene cluster evolution on a gene-by-gene basis. mycotools phylo crap will:

1. Take a cluster query and use a search algorithm (BLAST/mmseqs/Diamond) or an orthogroup-based approach to find homologs in the MycotoolsDB.
2. Apply sequence-similarity clustering to truncate the sequence set and detect outgroups.
3. Construct phylogenies of each query sequence.
4. Map locus synteny diagrams onto the tips of the phylogenies.

mycotools phylo crap operates on a query of MycotoolsDB accessions or a standalone multifasta of external accessions. Following homolog acquisition, it submits each set of hits for tree building, or for sequence-similarity clustering if the number of sequences exceeds the specified maximum (-m).

Sequence-similarity clustering can occasionally remove close homologs when too many sequences are analyzed relative to the maximum.

By default, mycotools phylo crap constructs trees with FastTree. Alternatively, specify -i/--iqtree to construct a robust IQ-TREE with 1000-bootstrap- iteration support values.

To search an extracted sub-MycotoolsDB with blastp and build phylogenies with FastTree:

mtdb extract --lineage Basidiomycota > basi.mtdb
mycotools phylo crap -q <QUERY_GENES> -d basi.mtdb -s blastp --bitscore 40 --cpu 12

---

Mycotools pipelining

Shell pipelining

Mycotools is designed to enable pipelining in both Linux shells and Python.

For commands such as mtdb accession fa/gbk/gff/locus, the input is an accession or set of accessions and can be piped in via standard input. Every command that accepts stdin requires - as the input argument. This lets you chain commands and quickly generate the input for downstream analysis.

Suppose you want to see whether an accession of interest belongs to a gene cluster. Run CRAP on the accessions within +/- 20 kb of your gene of interest:

mtdb accession locus -a athter2_3 -n -p 20000 | mycotools phylo crap -q - <ARGS>

Create a file of query genes from the CRAP output, extract locus accessions for each gene, and output a GenBank for each locus:

for acc in $(cat <INPUT_FILE>); do
    mtdb accession locus -a "$acc" -p 20000 -n | mtdb accession gbk -a - > "$acc.locus.gbk"
done

Phylogenetic analysis

Despite the benefits of increased sampling, large samples create two problems for phylogenetic analysis: large alignments lose resolution because they must consider many sequences, and analysis time increases with sample size.

For a small set of genes such as ITS, one can usually assume the gene family is conserved, so the dataset can be cut down to closely related organisms. For most other genes this assumption is invalid, because horizontal transfer can lead to unexpected distributions.

It is therefore sometimes necessary to balance alignment resolution against computational tractability by systematically truncating the dataset into subsets of gene homologs. Mycotools accomplishes this by iteratively constructing phylogenies, identifying and extracting clades of homologs, and repeating until a manageable tree is obtained. On its own this requires elaborate integration of multiple independent tools, but Mycotools handles most of it.

For example, to acquire a set of homologs for a gene family by searching a representative query protein sequence:

1. Extract a database of published sequences (or use other arguments to extract organisms of interest):

   mtdb extract > pub.mtdb

2. Obtain gene homologs with an e-value threshold of 10^-2:

   mycotools homology db -d pub.mtdb -e 2 -q <QUERY>

3. If there are more than 1000 homologs, truncate them around a focal gene to between 50 and 500 genes:

   mycotools cluster fasta -f <FASTA>.fa --min_seq 50 --max_seq 500 -i <FOCAL_GENE>

4. If there are fewer than 1000 homologs, construct a FastTree (-f, for many samples) or omit that parameter for a robust IQ-TREE:

   mycotools phylo tree -i <FASTA>.fa

5. If the phylogeny can be improved, extract a highly supported node from step 4 and reconstruct, or systematically truncate the dataset with step 3 and reconstruct.

Phylogenomic analysis

Phylogenomic tree from single-copy genes

Identify single-copy (or near single-copy) gene families from a MycotoolsDB (omit -d to use the full database):

mycotools cluster db -d <MTDB>

Build a multi-gene partition phylogenomic tree from the inferred single-copy orthologs:

mycotools phylo tree -p -i cluster_db_<YYYYmmdd>/single_copy_genes/ -c <CPUS>

Phylogenomic tree from near single-copy genes

Sometimes single-copy gene families do not exist because of copy-number variation or absence in some genomes — particularly relevant for broad taxonomic samples. Identify near single-copy gene families by specifying criteria for the maximum median genes per homology group, the standard deviation, and the minimum percent of genomes in which the homology group must be present. See mycotools cluster db -h for the full parameter list.

mycotools cluster db -d <MTDB> <NEAR_SINGLE_COPY_PARAMETERS> --hmm

Use the HMMs of the near single-copy genes to identify the best hits in your genomes:

mycotools homology db -a hmmsearch -q cluster_db_<YYYYmmdd>/hmm/*hmm -d <MTDB> -m 1

Build a phylogenomic tree from the best-hits output:

mycotools phylo tree -i homology_db_<YYYYmmdd>/fastas -p -c <CPUS>

Phylogenomic tree from predetermined near single-copy genes

Download the HMM of 14 near single-copy protein models found in Fungi and search for the best hit of each in your dataset:

wget https://raw.githubusercontent.com/xonq/mycotools/master/test/scos.hmm
mycotools homology db -d <MTDB> -a hmmsearch -q scos.hmm -m 1
mycotools phylo tree -i homology_db_<YYYYmmdd>/fastas -p -c <CPUS>
